Highly proven, our electronic relays are compact and cost effective. Used mainly in challenging environments, for example where intrinsic safety is required, they offer numerous standard features in either microprocessor or hardware based configurations.
Historically Mines department approvals have been obtained in Australia and South Africa.
The M-Tronix latest 1100V Isolation barrier is compliant with all relevant statutory and industry standards Including AS2081:2011.The bar3 is a three phase unit designed to isolate high voltages from detection equipment.
The bar4 is a three-phase unit designed to isolate high voltages from detection equipment. The bar4 is a physically smaller unit to the bar3 and is DIN rail mounted. Designed for use with the ELLFC3 Earth Leakage Lockout – Frozen Contactors.
M-Tronix is your source for highly innovative electronic control, protection, and monitoring systems for mining and general industry. M-Tronix is your exclusive distributor of the Bramco product range.
The i-F is designed to detect a leakage of voltage across a switching device of 24volts or more when the switching device is supposedly in the open or tripped position. A barrier is used in conjunction with this relay.
M-Tronix’s el3 is compliant to the latest Australian standards, including
AS2081:2011. Utilising microprocessor technology el3 provides next generation EL protection to VVVF drives.
M-Tronix elf3 detects earth fault currents
flowing in a power system and provides visual
indication of earth leakage conditions. The elf3 is
specifically designed to protect systems supplying VF drives and provides very high immunity to converter noise.
M-Tronix is your exclusive distributor of the Bramco product range.
Leaders in Innovative Protection Systems, M-TRONIX’s ELEC2 is compliant to the latest Australian standards, including
AS2081:2011.
Leaders in Innovative Protection Systems,the
Bramco M-Tronix i-AB is compliant to latest
statutory and industry standards. The M-Tronix
Earth Leakage Relay i-AB, has been designed to
detect Earth Fault Currents flowing in a power
system.
M-Tronix is your source for highly innovative electronic control, protection, and monitoring systems for mining and general industry. M-Tronix is your exclusive distributor of the Bramco product range. Leaders in Innovative Protection Systems, the iC1 is compliant to the latest Australian standards, including
AS2081:2011.
The iC3 Earth Continuity Relay is designed to
actively monitor the Resistance of the Pilot Earth
circuit in a supply cable by diode termination.
The iC3 utilises microprocessor technology to
provide a greater level of stability over longer
pilot cables by using digital filtering techniques.
The Earth Continuity Relay iC, has been designed to monitor the continuity of the Earth Circuit in a supply cable by grounding the pilot core via a diode, polarised positive to earth.
M-Tronix is your exclusive distributor of the Bramco product range. Leaders in Innovative Protection Systems, M-TRONIX’s ELEC2 is compliant to the latest Australian standards, including
AS2081:2011.
The M-Tronix latest 1100V Isolation barrier is compliant with all relevant statutory and industry standards Including AS2081:2011.The bar3 is a three phase unit designed to isolate high voltages from detection equipment.
The bar4 is a three-phase unit designed to isolate high voltages from detection equipment. The bar4 is a physically smaller unit to the bar3 and is DIN rail mounted. Designed for use with the ELLFC3 Earth Leakage Lockout – Frozen Contactors.
M-Tronix is your source for highly innovative electronic control, protection, and monitoring systems for mining and
general industry. M-Tronix is your exclusive distributor of the Bramco product range.
M-Tronix is your source for highly innovative electronic control, protection, and monitoring systems for mining and general industry. M-Tronix is your exclusive distributor of the Bramco product range. Leaders in Innovative Protection Systems, the iC1 is compliant to the latest Australian standards, including
AS2081:2011.
The iC3 Earth Continuity Relay is designed to
actively monitor the Resistance of the Pilot Earth
circuit in a supply cable by diode termination.
The iC3 utilises microprocessor technology to
provide a greater level of stability over longer
pilot cables by using digital filtering techniques.
The M-Tronix i-D has been designed to monitor the continuity of the Earth Circuit in a supply cable by grounding the pilot core via a diode, polarised positive to earth, and to allow remote start/stop operation by momentarily shorting a 100 Ohm resistor in the pilot circuit (which closes the relay) and opening the pilot with a stop button to open
the relay.

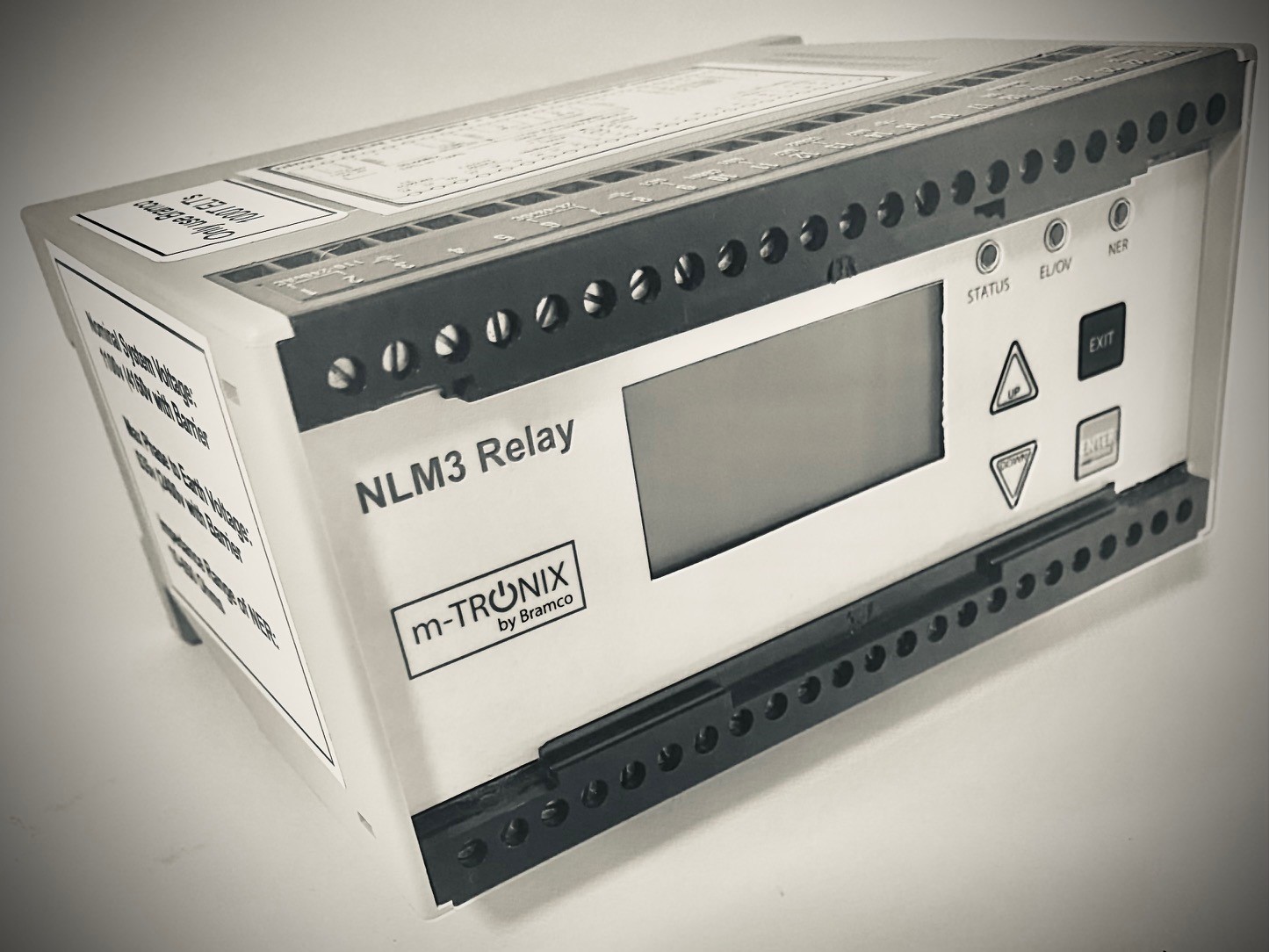

The Neutral Link Monitor relay (nlm3) is an NER
integrity protection device designed to continuously monitor the current limitation system on the secondary star point to earth connection of a supply transformer.
The BK400 Pullkey is a lanyard switch designed to provide pull wire protection on conveyors, it is available in two models.
These are the BK400S – single shafted key, which operates in a balanced pullwire configuration and the BK400D dual
shafted key, where the two pullwires operate mechanically independent of one another.
Flexible Design to Suit all Applications.
Temperature compensation is necessary where variations in temperature will cause the length of the pull wire to vary.
This we achieve by supplying a Tension Assembly to accept the extensions of the wire and the distribution back into the
system when movement occurs.
M-Tronix Bramco is proud to announce the recent
completion of our CCMS Signal Line Conveyor
Control and Manage- ment System on several
overland conveyors in central Queensland. The CCMS signal line was selected as a safety monitoring system for these conveyors which ranged in length from 1.5km (4950 feet) to 21km (69,300 feet).
We have to-date supplied over 300 systems worldwide and to countries such as
Australia, Sth Africa, Zambia, USA, Brazil, Peru, Ukraine, Belarus and others.
The M-Tronix Bramco Conveyor Control System is both powerful and flexible with
the latest in self diagnostics. All faults along the system are displayed on the control
screen. Our Conveyor Control system embodies the requirements of Occupational
Health and Safety Acts, duty of care and is operationally Totally Fail Safe.
Introduced in 1984, and continuously developed for almost forty years, this highly advanced package offers Control and Protection for powered outlets, controlling machines or electrical installations. Leaders in Innovative Protection Systems, the Bramco M-Tronix CPM1 is compliant to latest statutory and industry standards CPM1-Plus is the most advanced product in the CPM range.
Leaders in Innovative Protection Systems, the mp3 is compliant to latest statutory and industry standards. The M-Tronix Composite Motor Protection Module mp3 has been designed to cover critical protection features in one industrial module. The mp3 can function independently or in networked operations.

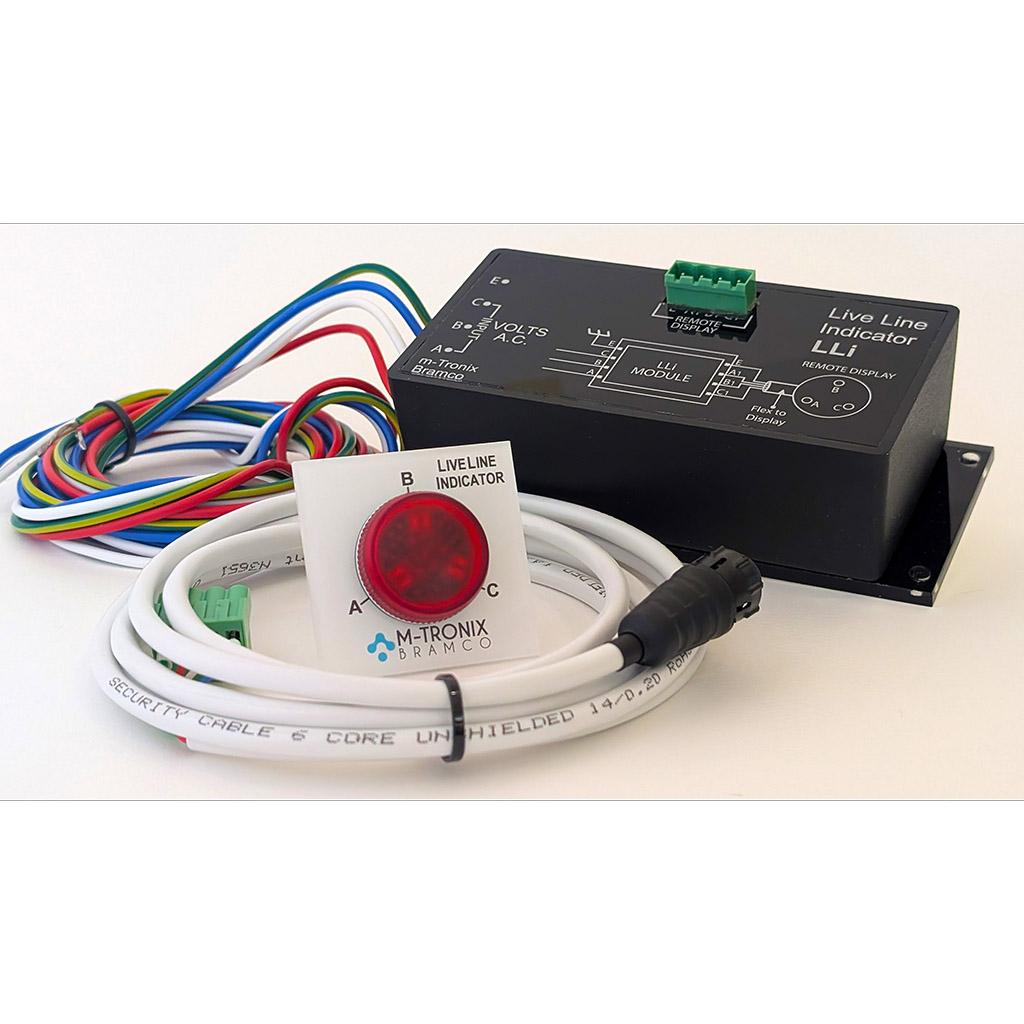

The LLi is a compact, panel mounted, low power,
three phase monitor device to provide visual
indication of load phases being present.
The three load phases and Earth are connected to
the LLi.

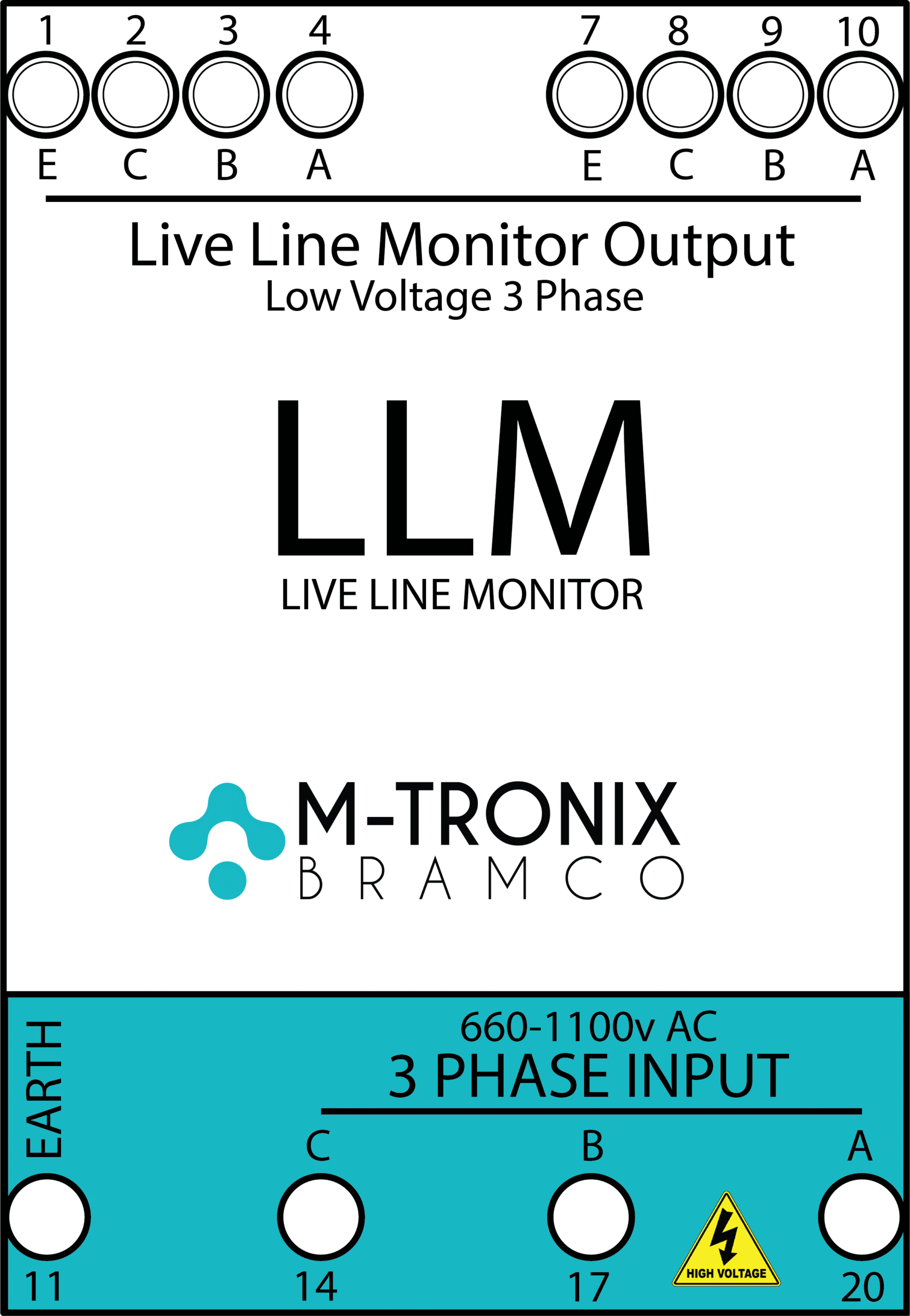

The LLM Module is a compact, DIN or screw
mounted, low power, three phase input device to
provide visual indication of load phases being
present.
The three load phases and Earth are connected to
the LLM module.
